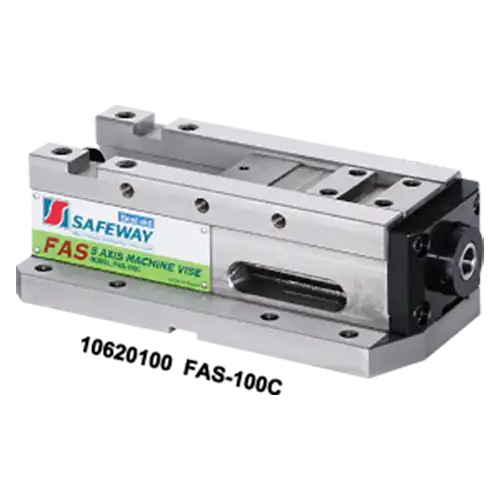

- Compact length, ideal for 5-axis machining centers.
- The clamping system offers 3 types by clamping force and function: mechanical type, self-centering type, and mechanical booster type.
- The jaws are designed on a dynamic-balance principle, with grippers on the jaws to handle various workpiece shapes and difficult-to-clamp parts.
- For special-shaped, round, oval, rectangular, irregular, slanted, stepped, and other hard-to-clamp skewed workpieces, clamping can be completed using the dynamic-balance mechanism on the movable jaw and different types of grippers.
- All sliding surfaces of the vise are hardened to HRC45, ensuring long-lasting wear resistance and accuracy.

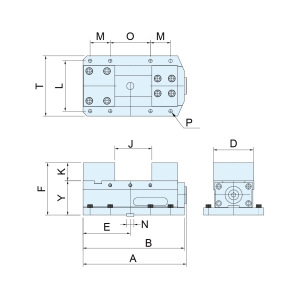

- Specifications Dimensions:
| Model | FAS-100C-MX | FAS-100C-MN | FAS-100C-MG |
|---|---|---|---|
| NO | 10622100 | 10624100 | 10626100 |
 |
 |
 |
|
| A | 262 | 262 | 262 |
| D | 100 | 100 | 25 |
| J | 0-90 | 0-75 | 0-90 |
| K | 45 | 60 | 65 |
| Y | 85 | 85 | 85 |
| N | 18 | 18 | 18 |
| G.W.(KG) | 18 | 19.5 | 16 |
| Model | FAS-100C-FB | FAS-100C-FM | FAS-100C-SJ |
|---|---|---|---|
| NO | 10628100 | 10630100 | 10632100 |
 |
 |
 |
|
| A | 262 | 262 | 262 |
| D | 160 | 160 | 100 |
| J | 185 | 165 | 145 |
| J1 | 85 | 100 | 0-90 |
| K | 22 | 22 | 45 |
| Y | 85 | 85 | 85 |
| N | 18 | 18 | 18 |
| G.W.(KG) | 17.5 | 16.5 | 17.5 |
