- Flexible opening capacity for optimized application of different workpiece.
- Most suitable for thick workpiece, special design for increasing stability of clamping capacity.

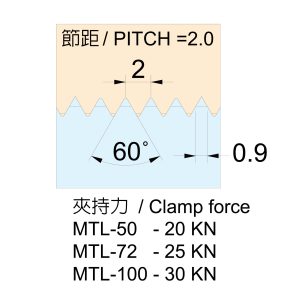

- High clamping forces, suitable for heavy duty working
- Vise body- sliding surface: Hardened ,Durable and Accurate.
- Easy for add-on components for increasing working efficiency
- Model: MTL-A (Single-2 piece) / MTL-D (Single-3 piece) / MTL-T (Twin-piece)
- Full ranges from jaw width (50 / 72 / 100) x length (300 / 400 / 500 / 600 / 700)
- Specifications:
| No. | Model | A | B | E | F | H | J | K | L | M | N | P | R | S | W | N.W. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 43005030 | MTL-50-300-A | 300 | 50 | 50 | 25 | 75 | 60 | 60 | 10 | 10 | 12 | 100 | 13 | M12x35Lx3 | 3x20 | 6.8 |
| 43005040 | MTL-50-400-A | 400 | 50 | 50 | 25 | 75 | 60 | 60 | 10 | 10 | 12 | 200 | 13 | M12x35Lx4 | 4x20 | 8.9 |
| 43005050 | MTL-50-500-A | 500 | 50 | 50 | 25 | 75 | 60 | 60 | 10 | 10 | 12 | 300 | 13 | M12x35Lx5 | 4x50 | 10.3 |
| 43005060 | MTL-50-600-A | 600 | 50 | 50 | 25 | 75 | 60 | 60 | 10 | 10 | 12 | 400 | 13 | M12x35Lx6 | 4x75 | 11.5 |
| 43005070 | MTL-50-700-A | 700 | 50 | 50 | 25 | 75 | 60 | 60 | 10 | 10 | 12 | 500 | 13 | M12x35Lx7 | 4x100 | 13.5 |
