- Easy Operating, Accurate Grinding, Cost Saving
- Portable and Convenient to carry in any place
- Using long lasting, precise grinding wheel
- Built-in collet bracket
- Using high efficient, stable frequency, and long lasting AC motor
- Specifications:
| 訂購編號 Order No | 型號 Model | 直徑範圍 Dia Capacity | 角度範圍 Angle Capacity | 淨重 N.W. | 毛重 G.W. | 筒夾 Collet | 外型尺寸 Dimension |
|---|---|---|---|---|---|---|---|

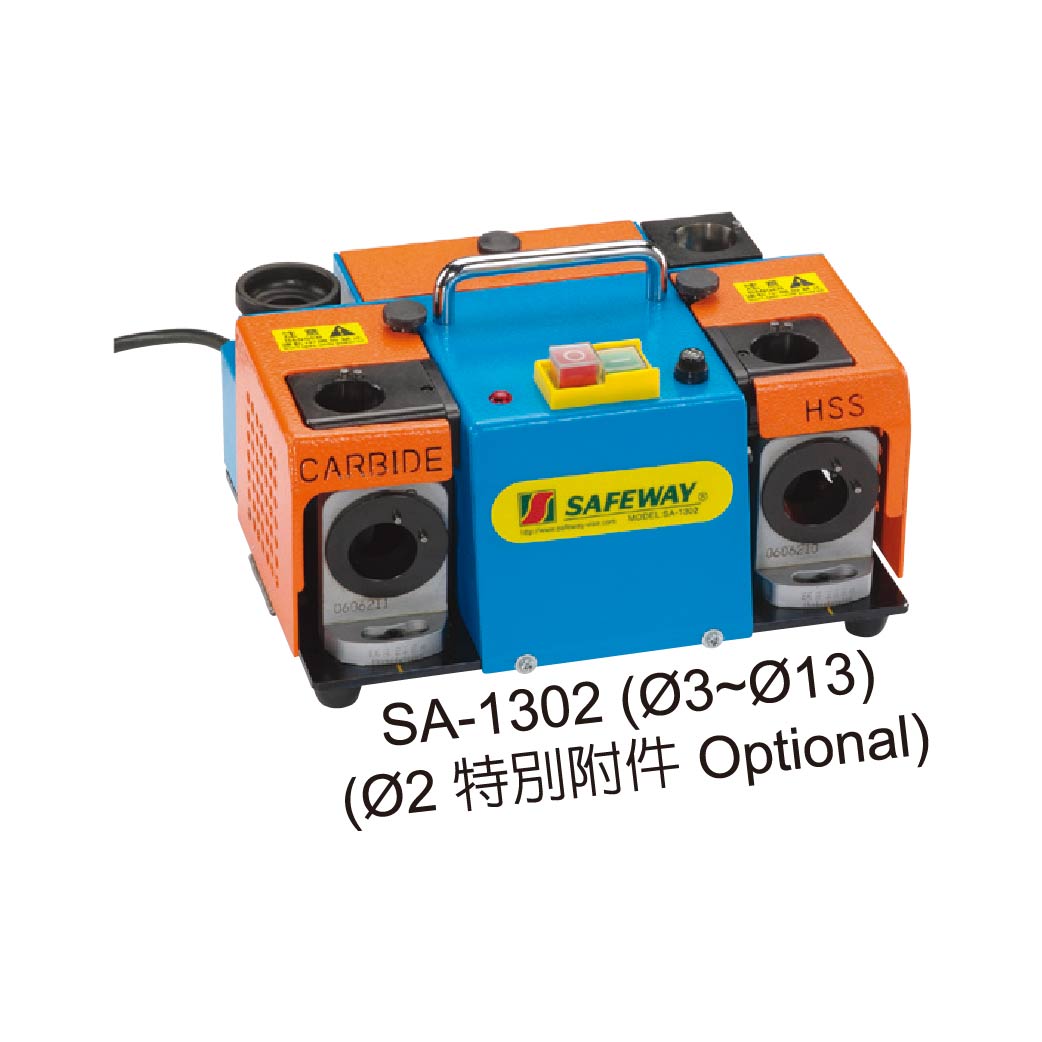

| 078201300 | SA-1302-110V | Ø3 ~ 13mm (Ø2 Optional) | 90° ~ 144° (Ø6~13), 118° ~ 135° (Ø2~6) | 12 | 13 | ER-20 | 320x220x200 |
| 078221300 | SA-1302-240V | Ø3 ~ 13mm (Ø2 Optional) | 90° ~ 144° (Ø6~13), 118° ~ 135° (Ø2~6) | 12 | 13 | ER-20 | 320x220x200 |

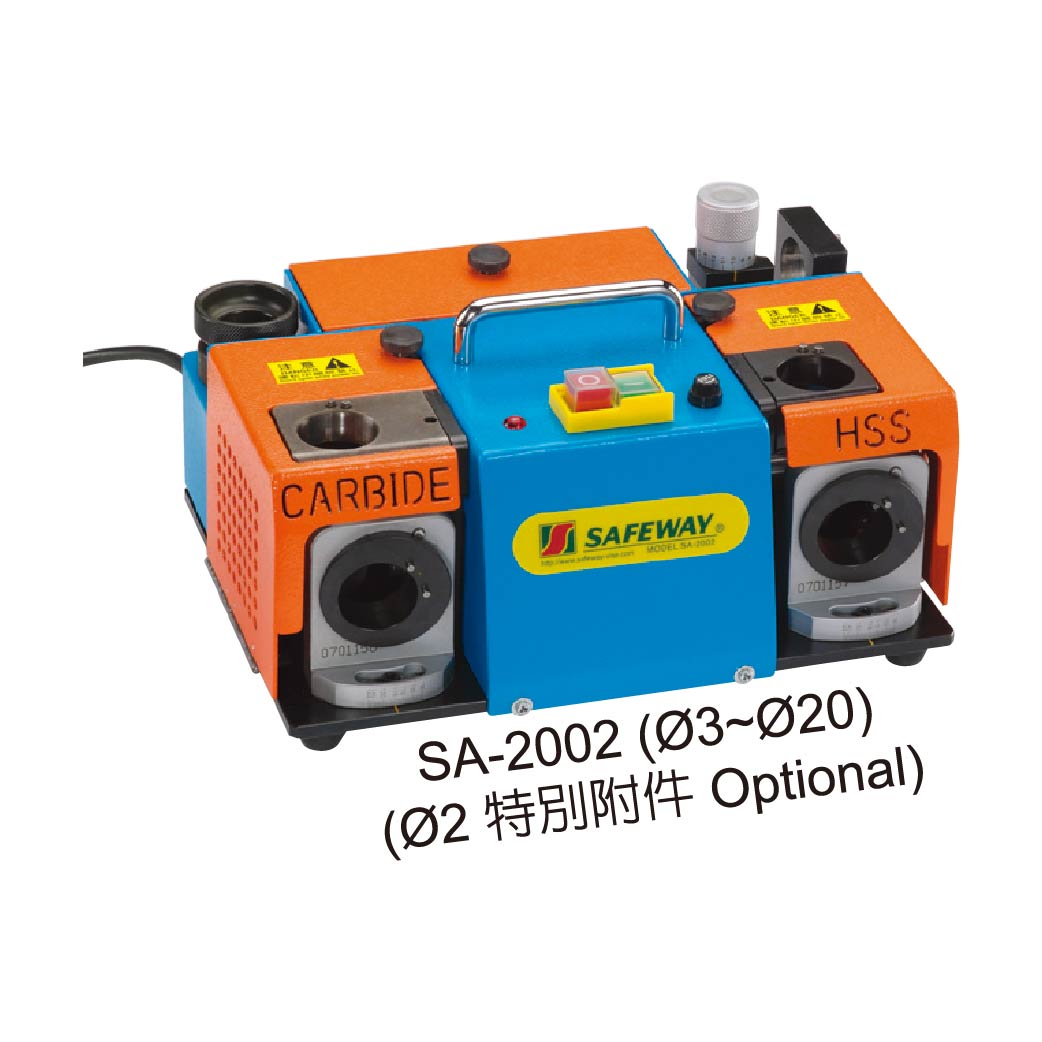

| 078272000 | SA-2002-110V | Ø3 ~ 20mm (Ø2 Optional) | 90° ~ 144° (Ø6~20), 118° ~ 135° (Ø2~6) | 18 | 19 | ER-25 | 412x240x220 |
| 078282000 | SA-2002-240V | Ø3 ~ 20mm (Ø2 Optional) | 90° ~ 144° (Ø6~20), 118° ~ 135° (Ø2~6) | 18 | 19 | ER-25 | 412x240x220 |
| 078242500 | SA-2502-110V | Ø13 ~ 26mm (Ø27-30 Optional) | 90° ~ 144° (Ø13~26), 118° ~ 135° (Ø27~30) | 29 | 30 | ER-40 | 490x270x220 |
| 078262500 | SA-2502-240V | Ø13 ~ 26mm (Ø27-30 Optional) | 90° ~ 144° (Ø13~26), 118° ~ 135° (Ø27~30) | 29 | 30 | ER-40 | 490x270x220 |
