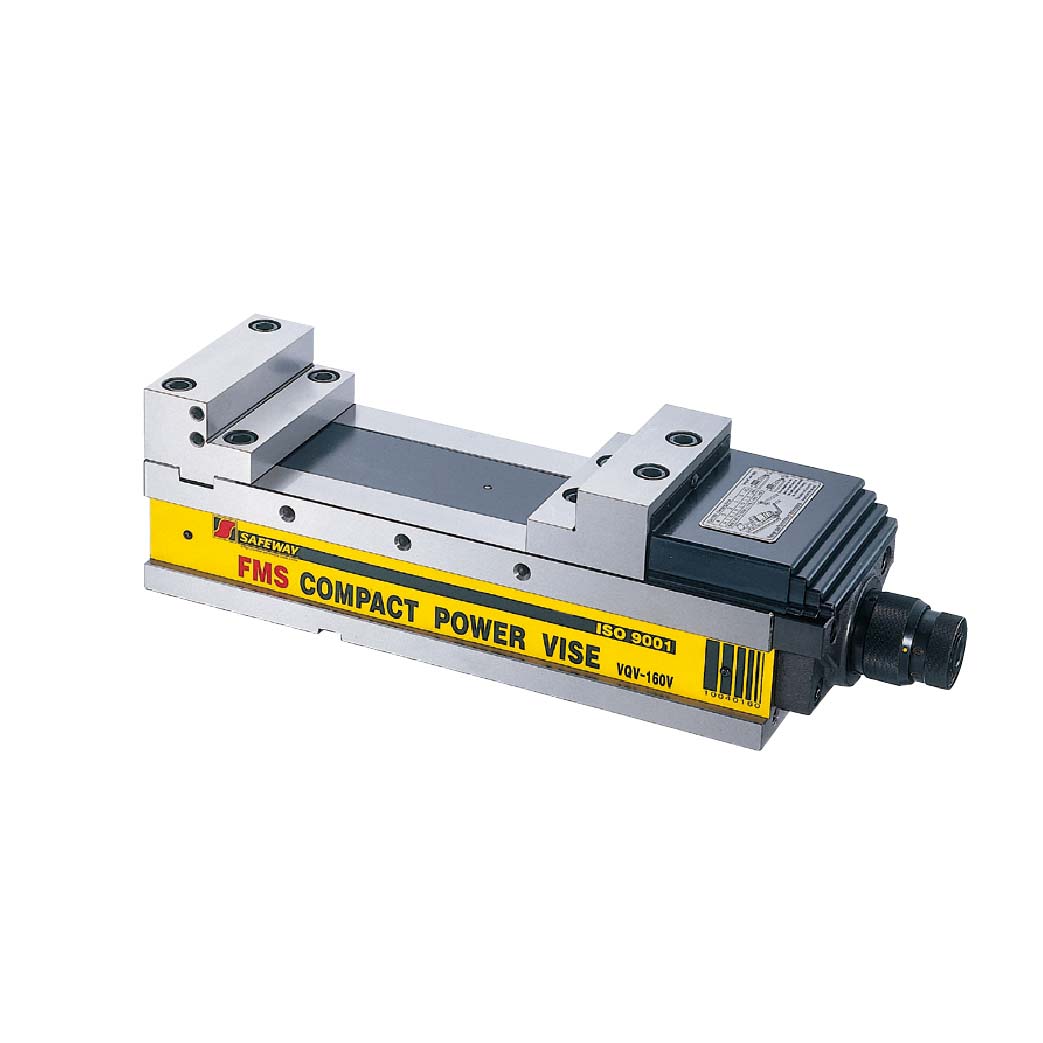

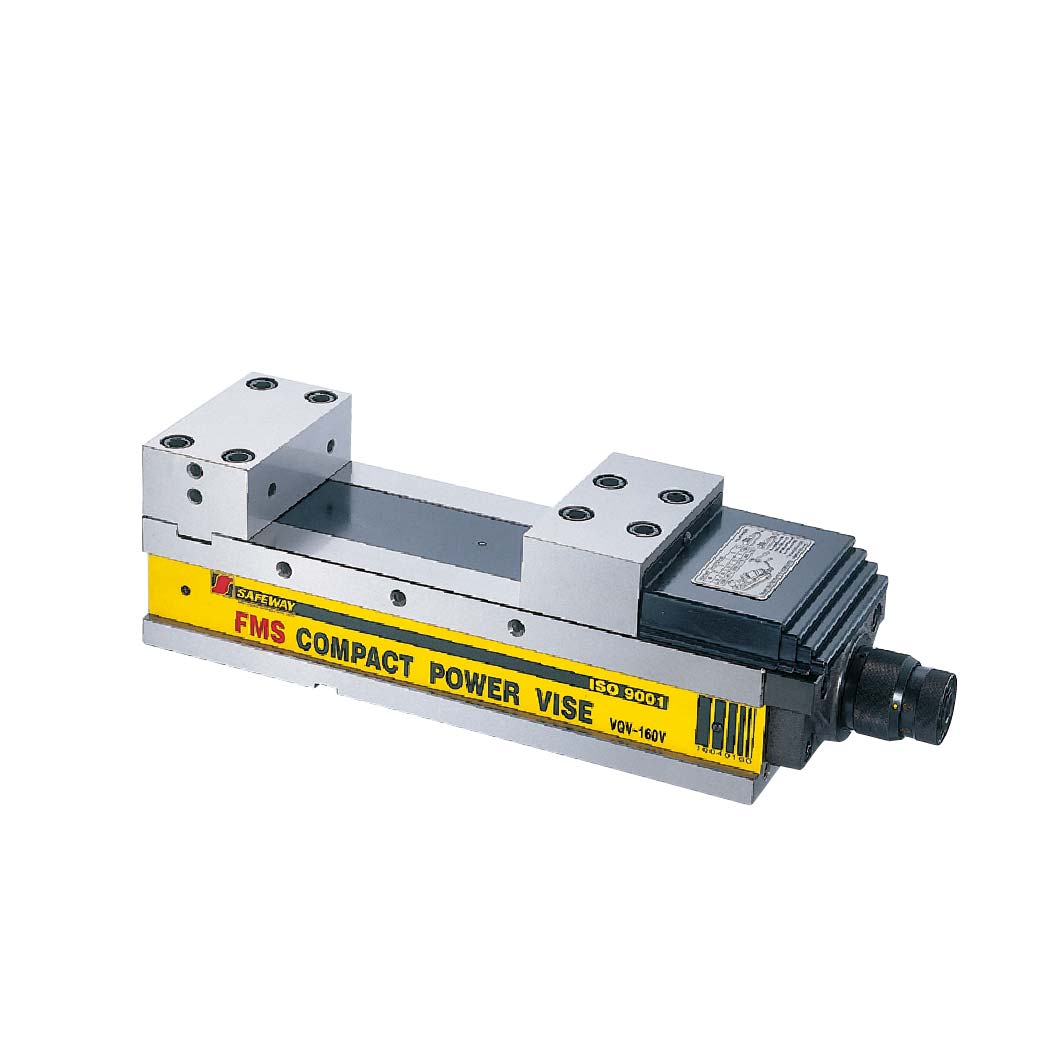

- Suitable for precision machining on FMS systems with vertical and horizontal machining centers.
- Adjustable clamping force with clear force indicator; maintains consistent force and precision through repetitive cycles; equipped with overload protection.
- Robust Material: The vise body is made of high-tensile ductile iron (FCD 600) (60 kg/mm², 80,000 psi), offering high tensile strength and excellent resistance to deformation.
- Sliding surfaces hardened to HRC 45°+ for long-term wear resistance and precision retention.
- Fixed and movable steel jaws, heat-treated to HRC 55° and precision ground (easy to assemble/disassemble).
- The chip-cover design prevents machining chips from penetrating the leadscrew and internal areas, avoiding hard-to-clean build-ups.
- Clamping System: Driven by power mechanical
- Specifications:
| Model | VQV-100V | VQV-130V | VQV-160V | VQV-200V | VQV-250V |
|---|---|---|---|---|---|
| No | 10040100 | 10040130 | 10040160 | 10040200 | 10040250 |
| A | 406 | 516 | 581 | 661 | 911 |
| B | 300 | 410 | 475 | 555 | 805 |
| C | 106 | 106 | 106 | 106 | 106 |
| D | 101 | 131 | 161 | 201 | 251 |
| E | 124 | 149 | 152 | 194 | 402.5 |
| F | 130 | 147 | 160 | 170 | 193 |
| G | 78 | 83 | 86 | 100 | 124 |
| I | 64 | 74 | 86 | 97 | 124 |
| J/J1 | 155/213 | 250/315 | 300/370 | 350/426 | 550/650 |
| K | 45 | 52 | 55 | 60 | 78 |
| M | 25 | 30 | 30 | 30 | 40 |
| N | 18 | 18 | 18 | 18 | 22 |
| X | 45 | 65 | 65 | 92 | 276.5 |
| Y | 85 | 95 | 105 | 110 | 115 |
| G.W. (KG) | 24 | 42 | 62 | 93 | 170 |
| Shipment size(mm) | 600x210x185 | 660x240x200 | 760x280x205 | 840x325x230 | 1045x410x330 |
| Limit.Pressure | 41KN | 45KN | 54KN | 66KN | 70KN |
