Rigid Vise – 5 Axis Vise

 專利 PATENTED

  • Clamping System：Double Locking、Self-Centering、One-Way Fixed、Reversed Jaw
  • Whole Steel, full hardness, grinding!
  • Reversed Jaw design, wide-range clamping capacity.
  • Suitable for 3/4/5 axis machine and integrated with Zero Point system
features eng 01

Features

Feature 1

One Vise Body, 2 Functions

Only change small parts that enable to switch ” Double Locking” and “Self-Centering” functions. Easy, Save Cost, and High Efficiency!

AB CHANGE 01

Feature 2

Quick Reversed Jaw Type

  • Quick! No tools are needed, No need to disassemble other parts that jaws can be quickly and easily disassembled and replaced, greatly increasing work efficiency.
  • Accurate! An internal down thrust mechanism with spring, which can ensure that the accuracy after the jaw replaced is within 0.005mm.
  • Stable! The holding teeth and dovetail groove design increases the stability of clamping the workpiece.
RV operation
dovetail 01
dovetail 02

Dovetail Jaw design

Pre-mill the dovetail groove on theworkpiece that enables the clamping height from 4mm to 120mm !

Feature 3



Quick Zero Point Base

Compatible with Zero Point system

  • Safeway: Positioning by Guide Keys
  • ZL Type: Positioning by Pull stud (52/96mm pitch) (For Lang system)
  • ZP Type：Positioning by Pull stud (requested drawing) (For other system)



ZS
ZS 01
ZL 01
ZP 01

Feature 4



Interchangeable jaws

Used with different types of jaws according to processing needs.



RV Jaws

General Types

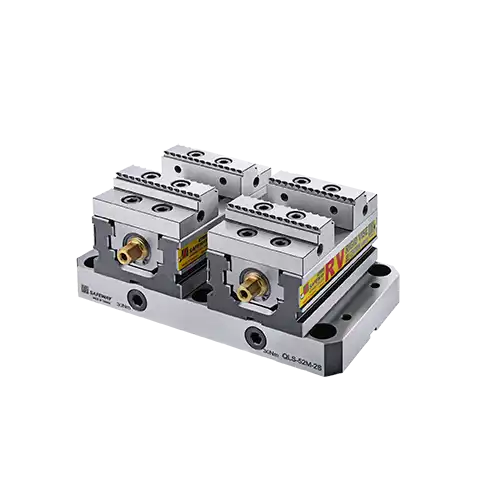

Double Clamping Vise
Double Clamping Vise

5 Products

Self-Centering
Self-Centering

5 Products

One way fixed
One way fixed

5 Products

Reversed Jaw
Reversed Jaw

2 Products
