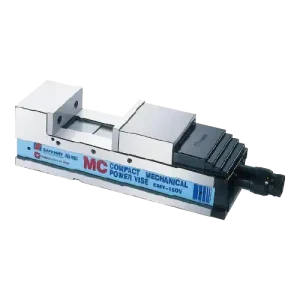

CMV Power Vise(Quick Power)

CMV Power Vise(Quick Power)

Catalog
Categories: MC COMPACT MACHINE VISE, MC Compact Power Vise Tags: Compact Fixed, MC COMPACT VISE, Power Mechanical driven
商品分類
  • DRILL GRINDING MACHINE (10)
  • FAS 5 AXIS MACHINE VISE (3)
  • FLEXIBLE YES VISE (9)
  • FMS COMPACT MACHINE VISE (25)
  • INDEX SPACER (4)
  • MC COMPACT MACHINE VISE (18)
    • MC Compact Power Vise (2)
    • MC Hydraulic Vise (5)
    • MC Mechanical Vise (5)
    • MC Multiply / Upright Compact Vise (5)
    • MC Pneumatic Quick Vise (1)
  • MULTIPLE CLAMPING (10)
  • NC ROTARY TABLE (9)
  • OTHER PARTS (7)
  • RV RIGID VISE (17)
  • TOOL-PRESETTING AND CHECKING (1)
  • TOOLING BLOCK (16)
  • WORKING TABLE (4)
  • Description
  • Additional information
  • This vise body is controlled, and always maintains the fixed height of vise body.
  • Holding workpiece firmly in single and Mutiple vises setup
  • Clamping system: Power mechanical type
  • Semi-spherical segment eliminates jaw lifting and workpiece tilting
  • Powerful material, the vise is made of high tensile spherical ductile iron (FCD600) (60kg/mm2, 80,000 psi).
  • The clamping force can be set up for different working and that is also maintaining same clamping force at different of time, the vise is also built the protention mechanism inside for preventing overloaded condition.
  • Specifications:

Model CMV-100V CMV-130V CMV-160V CMV-200V
No 07160100 07160130 07160160 07160200
A 475 540 630 705
B 340 405 495 570
C 135 135 135 135
D 101 131 161 201
F 133 150 163 173
H 15 15 15 18
J 0 - 125 0 - 180 0 - 240 0 - 280
J3 200 - 320 215 - 380 245 - 470 280 - 540
K 48 55 58 63
N 16 18 18 18
X 45 65 65 82
Y 85 95 105 110
G.W. 27 40 60 81
Shipment size(mm) 600x220x185 665x250x205 760x280x215 860x320x225
驅動方式

Power Mechanical driven

夾持方式

Compact Fixed

適用機台

Vertical Machining
