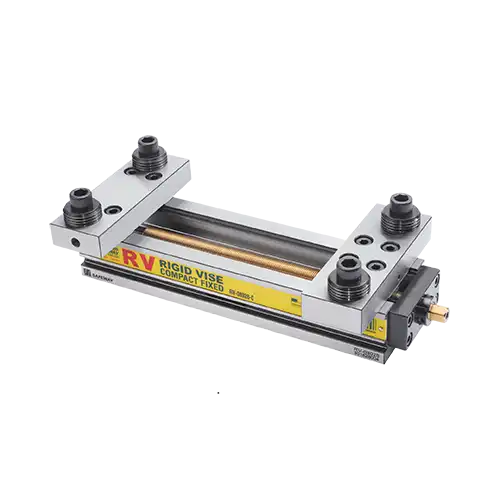

RV-C-FM Rigid Vise – One-way Fixed Type / Flat Jaw
- Clamping: Compact Fixed (One way)
- Driven: Lead Screw
- Jaw Type: Flat Jaw
- Class: RV-C-FM
Fixed Compact Rigid Vise
- High precision, high rigidity, and great stability.
- It is made of steel, hardened, and ground on the surface.
- Wiper protection on main screw and nut.
- Complete specifications with wide range of applications.
- Applied to 3-axis, 4-axis, and 5-axis machines.
- Suitable for zero point positioning systems (optional).

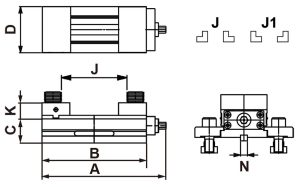

Specification and Size:
- Width: 80 / 100 / 125 (mm)
- Length:
- For width of 80mm, the length will be 130 / 180 / 230 / 280 mm
- For width of 100mm, the length will be 200 / 250 / 300 / 360 mm
- For width of 125mm, the length will be 220 / 270 / 320 / 380 mm
Details:
| ORDER NO | MODEL | A | B | C | D | K | N | J | J1 | N.W |
|---|---|---|---|---|---|---|---|---|---|---|
| 54408013 | RV-08013-C-FM | 164 | 130 | 48 | 80 | 22 | 12 | 11-41 | 31-61 | 5.3 |
| 54408018 | RV-08018-C-FM | 214 | 180 | 48 | 80 | 22 | 12 | 11-91 | 31-111 | 6.2 |
| 54408023 | RV-08023-C-FM | 264 | 230 | 48 | 80 | 22 | 12 | 11-141 | 31-161 | 7.1 |
| 54408028 | RV-08028-C-FM | 314 | 280 | 48 | 80 | 22 | 12 | 11-191 | 31-211 | 7.1 |
| 54410020 | RV-10020-C-FM | 234 | 200 | 48 | 100 | 22 | 12 | 11-111 | 31-131 | 8.1 |
| 54410025 | RV-10025-C-FM | 284 | 250 | 48 | 100 | 22 | 12 | 11-161 | 31-181 | 9.3 |
| 54410030 | RV-10030-C-FM | 334 | 300 | 48 | 100 | 22 | 12 | 11-211 | 31-231 | 10.5 |
| 54410036 | RV-10036-C-FM | 394 | 360 | 48 | 100 | 22 | 12 | 11-271 | 31-291 | 12.0 |
| 54412522 | RV-12522-C-FM | 254 | 220 | 52 | 125 | 22 | 12 | 11-119 | 46-151 | 11.4 |
| 54412527 | RV-12527-C-FM | 304 | 270 | 52 | 125 | 22 | 12 | 11-169 | 43-201 | 13.1 |
| 54412532 | RV-12532-C-FM | 354 | 320 | 52 | 125 | 22 | 12 | 11-219 | 43-251 | 14.7 |
| 54412538 | RV-12538-C-FM | 414 | 380 | 52 | 125 | 22 | 12 | 11-279 | 43-311 | 16.8 |
