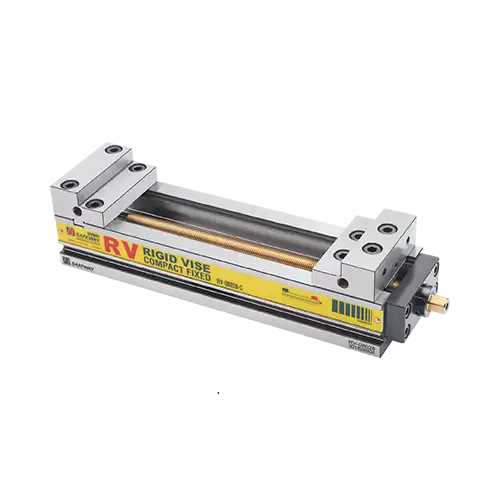

Fixed Compact Rigid Vise
- High precision, high rigidity, and great stability.
- Made of whole steel with hardened and ground.
- Wiper protection on main screw and nut.
- Complete specifications with wide range of applications.
- Applied to 3-axis, 4-axis, and 5-axis machines.
- Suitable for zero point positioning systems (optional).
Specification and Size:
- Width: 80 / 100 / 125 (mm)
- Lengths of each vise:
- For width of 80mm, the length will be 130 / 180 / 230 / 280 mm
- For width of 100mm, the length will be 200 / 250 / 300 / 360 mm
- For width of 125mm, the length will be 220 / 270 / 320 / 380 mm
Details:
| ORDER NO | MODEL | A | B | C | D | K | N | J | J1 | N.W |
|---|---|---|---|---|---|---|---|---|---|---|
| 54808013 | RV-08013-C-SJ | 164 | 130 | 48 | 80 | 26 | 12 | 0-32 | 37-76 | 3.9 |
| 54808018 | RV-08018-C-SJ | 214 | 180 | 48 | 80 | 26 | 12 | 0-82 | 46-126 | 4.8 |
| 54808023 | RV-08023-C-SJ | 264 | 230 | 48 | 80 | 26 | 12 | 0-132 | 48-176 | 5.8 |
| 54808028 | RV-08028-C-SJ | 314 | 280 | 48 | 80 | 26 | 12 | 0-182 | 46-226 | 5.8 |
| 54810020 | RV-10020-C-SJ | 234 | 200 | 48 | 100 | 28 | 12 | 0-102 | 16-148 | 6.9 |
| 54810025 | RV-10025-C-SJ | 284 | 250 | 48 | 100 | 28 | 12 | 0-152 | 46-196 | 8.1 |
| 54810030 | RV-10030-C-SJ | 334 | 300 | 48 | 100 | 28 | 12 | 0-202 | 46-246 | 9.3 |
| 54810036 | RV-10036-C-SJ | 394 | 360 | 48 | 100 | 28 | 12 | 0-262 | 46-306 | 10.7 |
| 54812522 | RV-12522-C-SJ | 254 | 220 | 52 | 125 | 30 | 12 | 0-110 | 52-160 | 10.3 |
| 54812527 | RV-12527-C-SJ | 304 | 270 | 52 | 125 | 30 | 12 | 0-160 | 52-210 | 11.9 |
| 54812532 | RV-12532-C-SJ | 354 | 320 | 52 | 125 | 30 | 12 | 0-210 | 52-260 | 13.6 |
| 54812538 | RV-12538-C-SJ | 414 | 380 | 52 | 125 | 30 | 12 | 0-270 | 52-320 | 15.7 |
