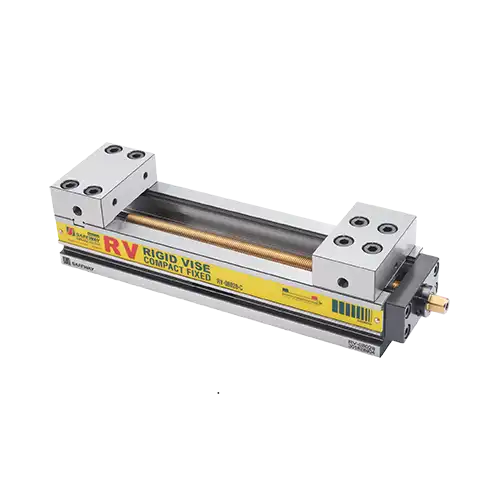

Fixed Compact Rigid Vise
- High precision, high rigidity, and great stability.
- Made of whole steel with hardened and ground.
- Wiper protection on main screw and nut.
- Complete specifications with wide range of applications.
- Applied to 3-axis, 4-axis, and 5-axis machines.
- Suitable for zero point positioning systems (optional).
Specification and Size:
- Width: 80 / 100 / 125 (mm)
- Lengths of each vise:
- For width of 80mm, the length will be 130 / 180 / 230 / 280 mm
- For width of 100mm, the length will be 200 / 250 / 300 / 360 mm
- For width of 125mm, the length will be 220 / 270 / 320 / 380 mm

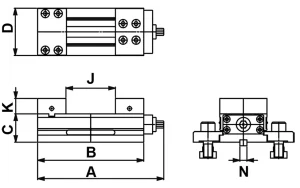

Details:
| ORDER NO | MODEL | A | B | C | D | K | N | J | N.W |
|---|---|---|---|---|---|---|---|---|---|
| 54008013 | RV-08013-C | 164 | 130 | 48 | 80 | 26 | 12 | 0-32 | 4.2 |
| 54008018 | RV-08018-C | 214 | 180 | 48 | 80 | 26 | 12 | 0-82 | 5.2 |
| 54008023 | RV-08023-C | 264 | 230 | 48 | 80 | 26 | 12 | 0-132 | 6.1 |
| 54008028 | RV-08028-C | 314 | 280 | 48 | 80 | 26 | 12 | 0-182 | 6.1 |
| 54010020 | RV-10020-C | 234 | 200 | 48 | 100 | 28 | 12 | 0-102 | 7.3 |
| 54010025 | RV-10025-C | 284 | 250 | 48 | 100 | 28 | 12 | 0-152 | 8.5 |
| 54010030 | RV-10030-C | 334 | 300 | 48 | 100 | 28 | 12 | 0-202 | 9.7 |
| 54010036 | RV-10036-C | 394 | 360 | 48 | 100 | 28 | 12 | 0-262 | 11.1 |
| 54012522 | RV-12522-C | 254 | 220 | 52 | 125 | 30 | 12 | 0-110 | 10.9 |
| 54012527 | RV-12527-C | 304 | 270 | 52 | 125 | 30 | 12 | 0-160 | 12.5 |
| 54012532 | RV-12532-C | 354 | 320 | 52 | 125 | 30 | 12 | 0-210 | 14.1 |
| 54012538 | RV-12538-C | 414 | 380 | 52 | 125 | 30 | 12 | 0-270 | 16.2 |
