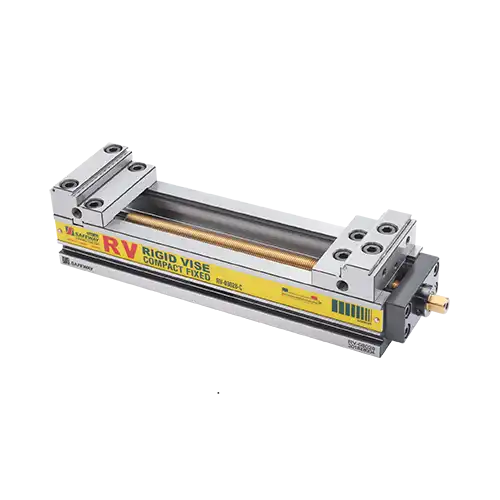

RV-C-GSJ Rigid Vise – One-way Fixed Type / Step Jaw (Holding teeth)
- Clamping: Compact Fixed (One way)
- Driven: Lead Screw
- Jaw Type: Step Holding Teeth Jaw
- Class: RV-C-GSJ
Fixed Compact Rigid Vise
- High precision, high rigidity, and great stability.
- It is made of steel, hardened, and ground on the surface.
- Wiper protection on main screw and nut.
- Complete specifications with wide range of applications.
- Applied to 3-axis, 4-axis, and 5-axis machines.
- Suitable for zero point positioning systems (optional).
Specification and Size:
- Width: 80 / 100 / 125 (mm)
- Length:
- For width of 80mm, the length will be 130 / 180 / 230 / 280 mm
- For width of 100mm, the length will be 200 / 250 / 300 / 360 mm
- For width of 125mm, the length will be 220 / 270 / 320 / 380 mm
Details:

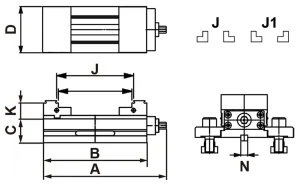

| ORDER NO | MODEL | A | B | C | D | K | N | J | J1 | N.W |
|---|---|---|---|---|---|---|---|---|---|---|
| 54608013 | RV-08013-C-GSJ | 164 | 130 | 48 | 80 | 26 | 12 | 0-32,8-38 | 37-76,43-82 | 3.9 |
| 54608018 | RV-08018-C-GSJ | 214 | 180 | 48 | 80 | 26 | 12 | 0-82,8-88 | 46-126,52-132 | 4.8 |
| 54608023 | RV-08023-C-GSJ | 264 | 230 | 48 | 80 | 26 | 12 | 0-132,8-138 | 46-176,52-182 | 5.7 |
| 54608028 | RV-08028-C-GSJ | 314 | 280 | 48 | 80 | 26 | 12 | 0-182,8-188 | 46-226,52-232 | 5.7 |
| 54610020 | RV-10020-C-GSJ | 234 | 200 | 48 | 100 | 28 | 12 | 0-102,8-108 | 46-146,52-152 | 6.8 |
| 54610025 | RV-10025-C-GSJ | 284 | 250 | 48 | 100 | 28 | 12 | 0-152,8-158 | 46-196,52-202 | 8.0 |
| 54610030 | RV-10030-C-GSJ | 334 | 300 | 48 | 100 | 28 | 12 | 0-202,8-208 | 46-246,52-252 | 9.2 |
| 54610036 | RV-10036-C-GSJ | 394 | 360 | 48 | 100 | 28 | 12 | 0-262,8-268 | 46-306,52-312 | 10.7 |
| 54612522 | RV-12522-C-GSJ | 254 | 220 | 52 | 125 | 30 | 12 | 0-110,8-116 | 52-160,58-166 | 10.2 |
| 54612527 | RV-12527-C-GSJ | 304 | 270 | 52 | 125 | 30 | 12 | 0-160,8-166 | 52-210,58-216 | 11.8 |
| 54612532 | RV-12532-C-GSJ | 354 | 320 | 52 | 125 | 30 | 12 | 0-210,8-216 | 52-260,58-266 | 13.5 |
| 54612538 | RV-12538-C-GSJ | 414 | 380 | 52 | 125 | 30 | 12 | 0-270,8-276 | 52-320,58-326 | 15.6 |
