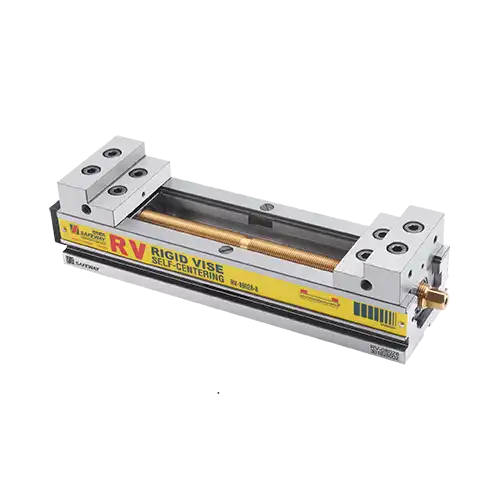

Self Centering Rigid Vise
- High precision, high rigidity, and great stability.
- Made of whole steel with hardened and ground.
- Wiper protection on main screw and nut.
- Complete specifications with wide range of applications.
- Applied to 3-axis, 4-axis, and 5-axis machines.
- Suitable for zero point positioning systems (optional).
Specification and Size:
- Width: 80 / 100 / 125 (mm)
- Lengths of each vise:
- For width of 80mm, the length will be 130 / 180 / 230 / 280 mm
- For width of 100mm, the length will be 200 / 250 / 300 / 360 mm
- For width of 125mm, the length will be 220 / 270 / 320 / 380 mm
Details:

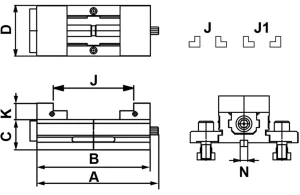

| ORDER NO | MODEL | A | B | C | D | K | N | J | J1 | N.W |
|---|---|---|---|---|---|---|---|---|---|---|
| 52808013 | RV-08013-B-SJ | 143 | 130 | 48 | 80 | 26 | 12 | 0-32 | 37-76 | 4.3 |
| 52808018 | RV-08018-B-SJ | 193 | 180 | 48 | 80 | 26 | 12 | 0-82 | 46-126 | 5.1 |
| 52808023 | RV-08023-B-SJ | 243 | 230 | 48 | 80 | 26 | 12 | 0-132 | 46-176 | 6.1 |
| 52808028 | RV-08028-B-SJ | 293 | 280 | 48 | 80 | 26 | 12 | 0-182 | 46-226 | 7.0 |
| 52810020 | RV-10020-B-SJ | 213 | 200 | 48 | 100 | 28 | 12 | 0-102 | 46-146 | 7.3 |
| 52810025 | RV-10025-B-SJ | 263 | 250 | 48 | 100 | 28 | 12 | 0-152 | 46-196 | 8.5 |
| 52810030 | RV-10030-B-SJ | 313 | 300 | 48 | 100 | 28 | 12 | 0-202 | 46-246 | 9.7 |
| 52810036 | RV-10036-B-SJ | 373 | 360 | 48 | 100 | 28 | 12 | 0-262 | 46-306 | 9.7 |
| 52812522 | RV-12522-B-SJ | 233 | 220 | 52 | 125 | 30 | 12 | 0-110 | 52-160 | 11.0 |
| 52812527 | RV-12527-B-SJ | 283 | 270 | 52 | 125 | 30 | 12 | 0-160 | 52-210 | 12.6 |
| 52812532 | RV-12532-B-SJ | 333 | 320 | 52 | 125 | 30 | 12 | 0-210 | 52-260 | 14.4 |
| 52812538 | RV-12538-B-SJ | 393 | 380 | 52 | 125 | 30 | 12 | 0-270 | 52-320 | 16.3 |
