RV-A-FM Rigid Vise – Double Clamping Type / Flat Jaw
- Clamping: Double Clamping
- Driven: Lead Screw
- Jaw Type: Flat Jaw
- Class: RV-A-FM
Double Clamping Rigid Vise
- High precision, high rigidity, and great stability.
- It is made of steel, hardened, and ground on the surface.
- Wiper protection on main screw and nut.
- Complete specifications with wide range of applications.
- Applied to 3-axis, 4-axis, and 5-axis machines.
- Suitable for zero point positioning systems (optional).
Specification and Size:
- Width: 80 / 100 / 125 (mm)
- Length:
- For width of 80mm, the length will be 180 / 230 / 280 mm
- For width of 100mm, the length will be 200 / 250 / 300 / 360 mm
- For width of 125mm, the length will be 220 / 270 / 320 / 380 mm
Details:

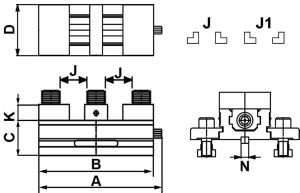

| ORDER NO | MODEL | A | B | C | D | K | N | J | J1 | N.W |
|---|---|---|---|---|---|---|---|---|---|---|
| 50408018 | RV-08018-A-FM | 193 | 180 | 48 | 80 | 22 | 12 | 10-30 | 20-40 | 7.5 |
| 50408023 | RV-08023-A-FM | 243 | 230 | 48 | 80 | 22 | 12 | 10-55 | 20-65 | 8.5 |
| 50408028 | RV-08028-A-FM | 293 | 280 | 48 | 80 | 22 | 12 | 10-80 | 20-90 | 9.4 |
| 50410020 | RV-10020-A-FM | 213 | 200 | 48 | 100 | 22 | 12 | 10-40 | 20-50 | 9.6 |
| 50410025 | RV-10025-A-FM | 263 | 250 | 48 | 100 | 22 | 12 | 10-65 | 20-75 | 10.8 |
| 50410030 | RV-10030-A-FM | 313 | 300 | 48 | 100 | 22 | 12 | 10-90 | 20-100 | 12.0 |
| 50410036 | RV-10036-A-FM | 373 | 360 | 48 | 100 | 22 | 12 | 10-120 | 20-130 | 12.0 |
| 50412522 | RV-12522-A-FM | 233 | 220 | 52 | 125 | 22 | 12 | 10-44 | 26-60 | 13.3 |
| 50412527 | RV-12527-A-FM | 283 | 270 | 52 | 125 | 22 | 12 | 10-69 | 26-85 | 14.9 |
| 50412532 | RV-12532-A-FM | 333 | 320 | 52 | 125 | 22 | 12 | 10-94 | 26-110 | 16.6 |
| 50412538 | RV-12538-A-FM | 393 | 380 | 52 | 125 | 22 | 12 | 10-124 | 26-140 | 18.6 |
