Double Clamping Rigid Vise
- High precision, high rigidity, and great stability.
- Made of whole steel with hardened and ground.
- Wiper protection on main screw and nut.
- Complete specifications with wide range of applications.
- Applied to 3-axis, 4-axis, and 5-axis machines.
- Suitable for zero point positioning systems (optional).
Specification and Size:
- Width: 80 / 100 / 125 (mm)
- Lengths of each vise:
- For width of 80mm, the length will be 180 / 230 / 280 mm
- For width of 100mm, the length will be 200 / 250 / 300 / 360 mm
- For width of 125mm, the length will be 220 / 270 / 320 / 380 mm
Details:

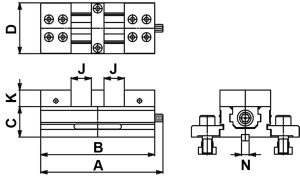

| ORDER NO | MODEL | A | B | C | D | K | N | J | N.W |
|---|---|---|---|---|---|---|---|---|---|
| 50008018 | RV-08018-A | 193 | 180 | 48 | 80 | 26 | 12 | 0-30 | 5.8 |
| 50008023 | RV-08023-A | 243 | 230 | 48 | 80 | 26 | 12 | 0-55 | 6.8 |
| 50008028 | RV-08028-A | 293 | 280 | 48 | 80 | 26 | 12 | 0-80 | 7.7 |
| 50010020 | RV-10020-A | 213 | 200 | 48 | 100 | 28 | 12 | 0-40 | 8 |
| 50010025 | RV-10025-A | 263 | 250 | 48 | 100 | 28 | 12 | 0-65 | 9.2 |
| 50010030 | RV-10030-A | 313 | 300 | 48 | 100 | 28 | 12 | 0-90 | 10.4 |
| 50010036 | RV-10036-A | 373 | 360 | 48 | 100 | 28 | 12 | 0-120 | 10.5 |
| 50012522 | RV-12522-A | 233 | 220 | 52 | 125 | 30 | 12 | 0-39 | 12.3 |
| 50012527 | RV-12527-A | 283 | 270 | 52 | 125 | 30 | 12 | 0-64 | 13.9 |
| 50012532 | RV-12532-A | 333 | 320 | 52 | 125 | 30 | 12 | 0-89 | 15.7 |
| 50012538 | RV-12538-A | 393 | 380 | 52 | 125 | 30 | 12 | 0-119 | 17.6 |
