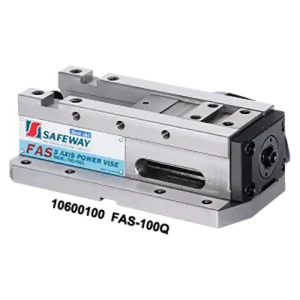

FAS-100Q 5 Axis Vise (Power Mechanical)

5 Axis Power Vise

SKU: N/A Category: FAS 5 Axis Machine Vise Tags: 5 Axis Vise, Compact Fixed, Power Mechanical Vise

Description
Additional information

Compact vise body which is best choice for 5-axis machining center
Clamping system: Mechancial, Self-centering, Power type
The optimized solution “balance mechanism with grippers” : Any workpiece which are difficult to clamp can be pereformed well.
Best choice for irregular, round, asymmetrical, and step workpiece
Vise body- sliding surface: Hardened ,Durable and Accurate.

Specifications:

Model	FAS-100Q-MX	FAS-100Q-MN	FAS-100Q-MG
Order NO	10602100	10604100	10606100

A	257	257	257
D	100	100	25
J	0-90	0-75	0-90
K	45	60	65
Y	85	85	85
N	18	18	18
G.W.(KG)	19.5	20.5	17.5
Clamping Forces	40KN	40KN	40KN

Model	FAS-100Q-FB	FAS-100Q-FM	FAS-100Q-SJ
Order NO	10608100	10610100	10612100

A	257	257	257
D	160	160	100
J	185	165	145
J1	85	100	0-90
K	22	22	45
Y	85	85	85
N	18	18	18
G.W.(KG)	19.5	18.5	18
Clamping Forces	40KN	40KN	40KN

口金種類	Flat Balance Jaw, Flat Jaw, Narrow-type Jaw, Standard Jaw, Step Jaw, Wide-type Jaw
驅動方式	Power Mechanical Vise
夾持方式	Compact Fixed
適用機台	5 Axis machining, Vertical Machining

Dimensions

Weight	19.5 kg
