QLS-52/96M-B1/B2 Quick Zero Point Base- Adapter Riser
特性:
- 夾緊型式: 手動型
- 模組化設計且重覆定位精度高
- 採全鋼製，整座硬化熱處理，並精密研磨，堅固耐用
- 適用於3/4/5軸機台廣泛運用
- 適用於所有協威剛性虎鉗 (RV系列)
Features:
- Clamping system: Manual
- Modular design with high repeatability
- Made of steel, full hardness and grinding for durability
- Suitable for 3/4/5 axis machines
- Suitable for all Safeway Rigid Vise (RV Series)
QLS-52M-B1 / QLS-52M-B2

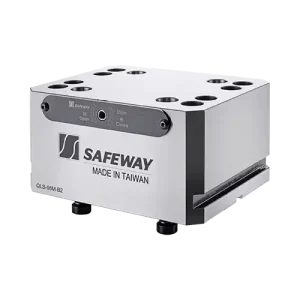

QLS-96M-B1 / QLS-96M-B2
C: 可接受特殊尺寸訂製(Special design accepted)
| ORDER 訂購編號 | MODEL 型號 | A | B | *C | D | E | G | K | Stud 適用拉栓 | N.W 淨重 | G.W 毛重 | Shipment size 裝箱尺寸 | Remarks 備註 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 30520600 | QLS-52M-B1 | 150 | 116 | 60 | 52 | 100 | 52/96 | 12 | Ø 16 / Ø 20 | ||||
| 30520602 | QLS-52M-B2 | 150 | 116 | 100 | 52 | 100 | 52/96 | 12 | Ø 16 / Ø 20 | ||||
| 30960600 | QLS-96M-B1 | 192 | 156 | 60 | 96 | 150 | 96 | 12 | Ø 20 | ||||
| 30960602 | QLS-96M-B2 | 192 | 156 | 100 | 96 | 150 | 96 | 12 | Ø 20 |
| Hole Pitches | 52mm, 96mm |
|---|
