QLS-52/96M-P1 Quick Zero-Point Positioning System – Single Base/Rectangular Type
Quick Zero-Point Positioning System – Single Base/Rectangular Type
Catalogue特性:
- 夾緊型式: 手動型/單座
- 模組化設計且重覆定位精度高
- 採全鋼製，整座硬化熱處理，並精密研磨，堅固耐用
- 適用於3/4/5軸機台廣泛運用
- 適用於所有協威剛性虎鉗 (RV系列)
Features:
- Clamping system: Manual/Single Base
- Modular design with high repeatability
- Made of steel, full hardness and grinding for durability
- Suitable for 3/4/5 axis machines
- Suitable for all Safeway Rigid Vise (RV Series)

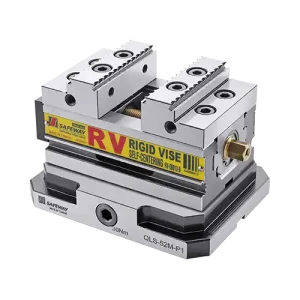

QLS-52M-P1

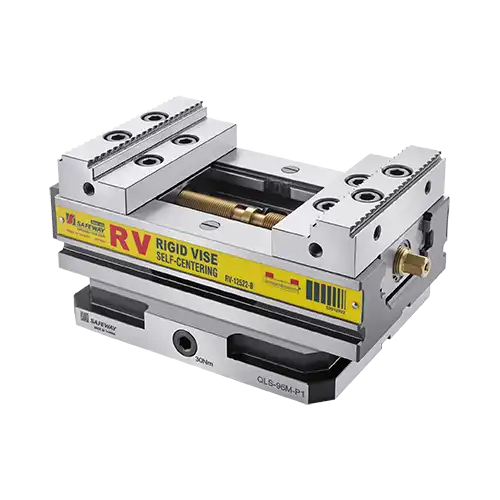

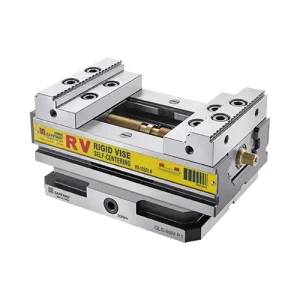

QLS-96M-P1
| ORDER 訂購編號 | MODEL 型號 | A | B | C | D | E | K | Stud 適用拉栓 | N.W 淨重 | G.W 毛重 | Shipment size 裝箱尺寸 | Remarks 備註 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 30520000 | QLS-52M-P1 | 150 | 116 | 27 | 52 | 100 | 12 | Ø 16 | ||||
| 30960000 | QLS-96M-P1 | 192 | 156 | 27 | 96 | 150 | 12 | Ø 20 |
| Hole Pitches | 52mm, 96mm |
|---|
