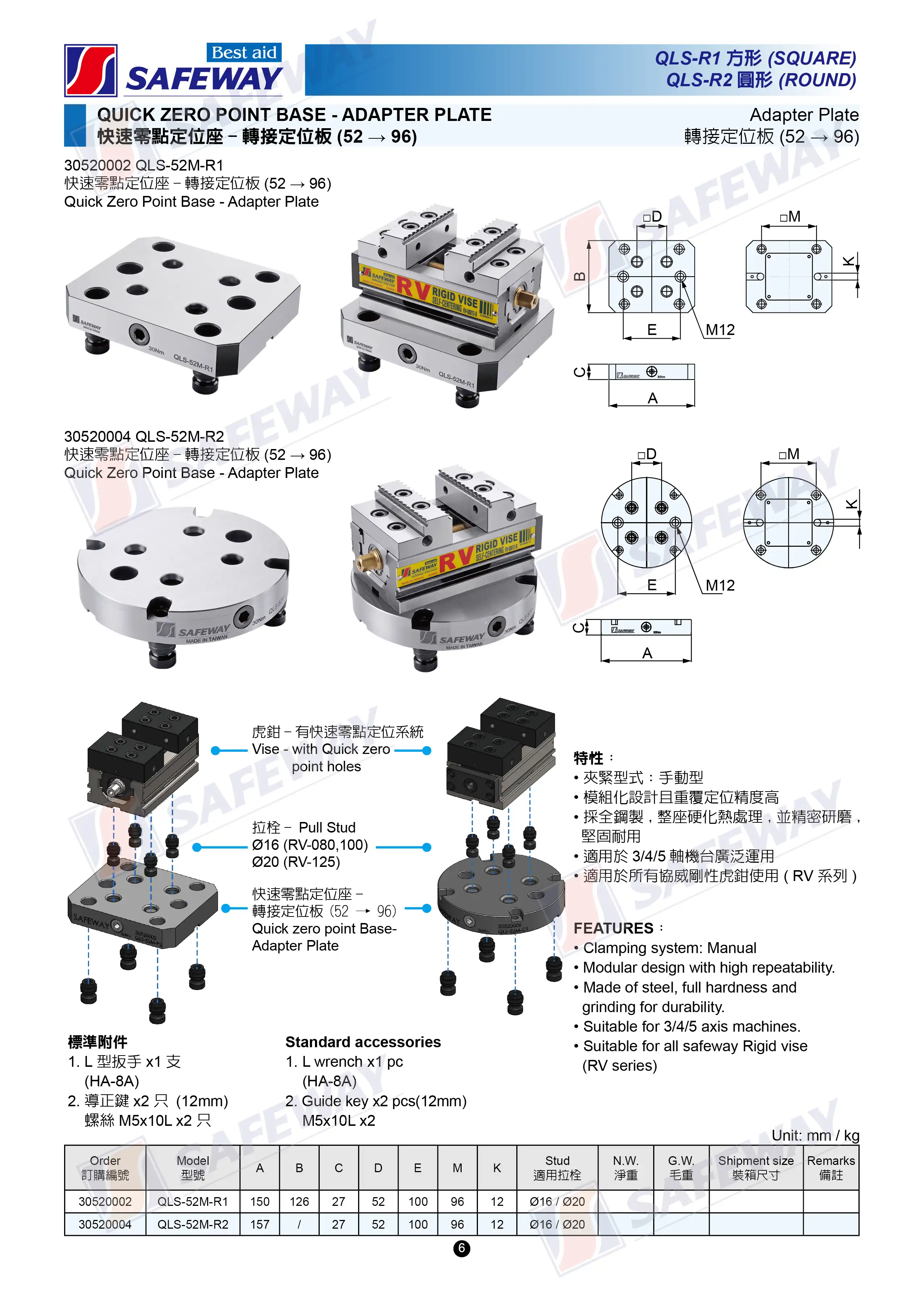

QLS-52M-R1/R2 Quick Zero Point Base- Adapter (52→96)

QLS-52M-R1/R2 Quick Zero Point Base- Adapter (52→96) - Image 2

QLS-52M-R1/R2 Quick Zero Point Base- Adapter (52→96) - Image 3

QLS-52M-R1/R2 Quick Zero Point Base- Adapter (52→96)

QLS-52M-R1/R2

Quick Zero Point Base- Adapter (52→96)

SKU: N/A Category: Quick Zero Point Base Tag: 零點定位系統

Description
Additional information

特性:

夾緊型式: 手動型
模組化設計且重覆定位精度高
採全鋼製，整座硬化熱處理，並精密研磨，堅固耐用
適用於3/4/5軸機台廣泛運用
適用於所有協威剛性虎鉗 (RV系列)

Features:

Clamping system: Manual
Modular design with high repeatability
Made of steel, full hardness and grinding for durability
Suitable for 3/4/5 axis machines
Suitable for all Safeway Rigid Vise (RV Series)

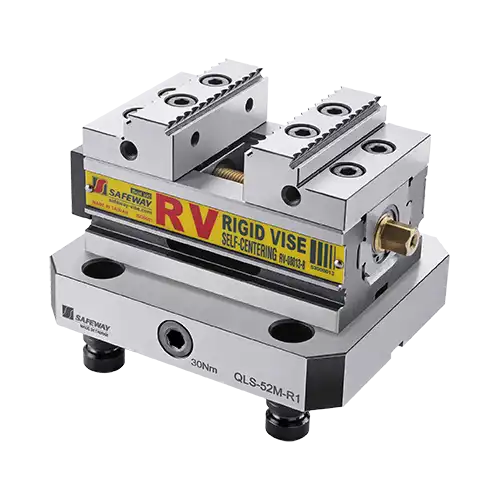

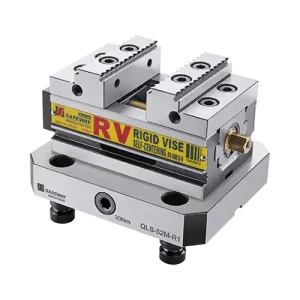

QLS-52M-R1

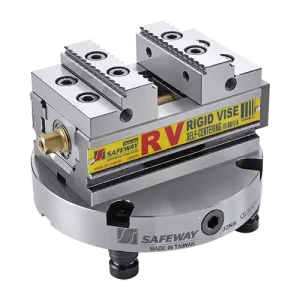

QLS-52M-R2

ORDER 訂購編號	MODEL 型號	A	B	C	D	E	M	K	Stud 適用拉栓	N.W 淨重	G.W 毛重	Shipment size 裝箱尺寸	Remarks 備註
30520002	QLS-52M-R1	150	126	27	52	100	96	12	Ø 16 / Ø 20
30520004	QLS-52M-R2	150	/	27	52	100	96	12	Ø 16 / Ø 20

MODEL:	QLS-52M-R1, QLS-52M-R2
