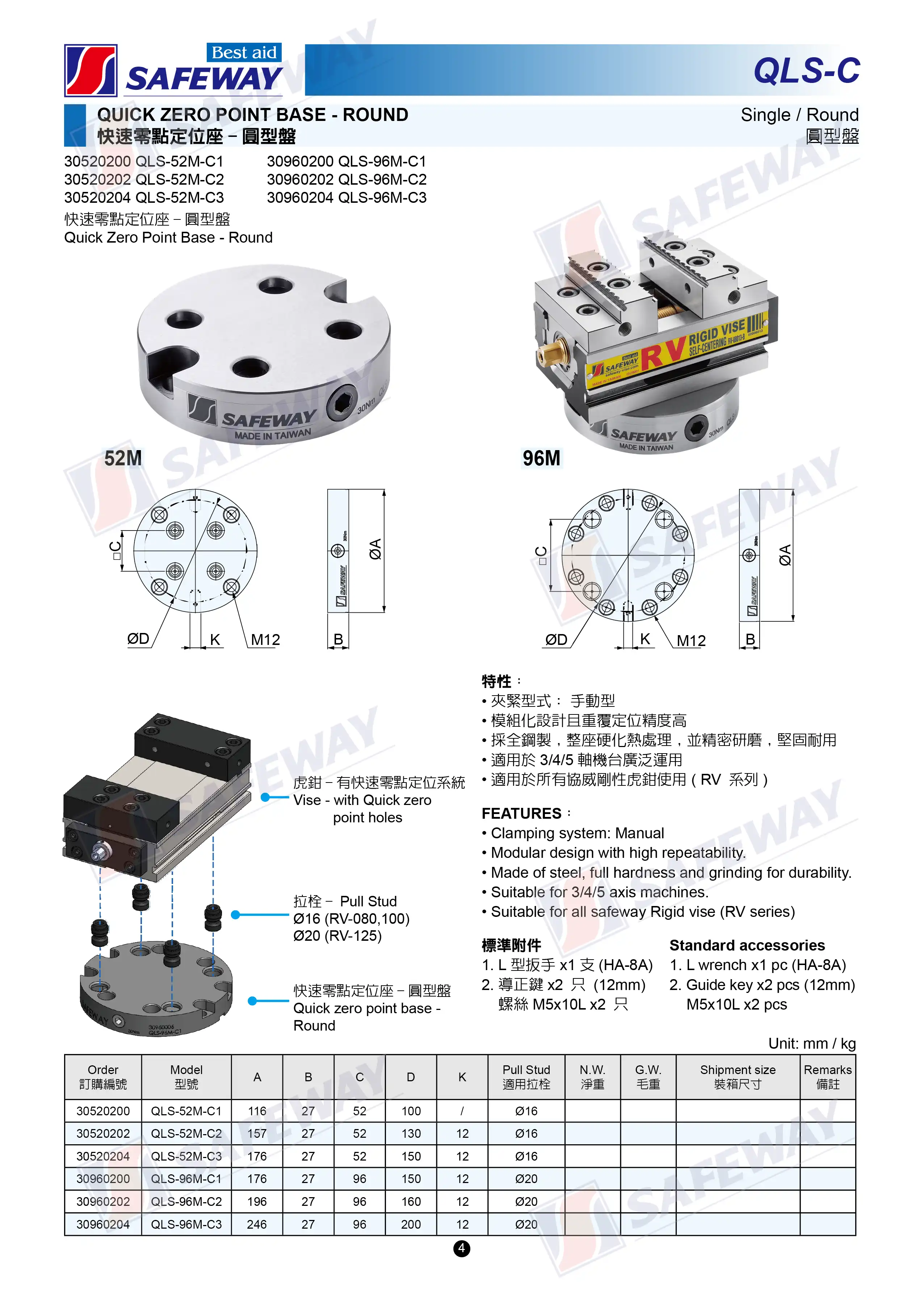

QLS-52/96M-C1/C2/C3 Quick Zero Point Base- Round
特性:
- 夾緊型式: 手動型
- 模組化設計且重覆定位精度高
- 採全鋼製，整座硬化熱處理，並精密研磨，堅固耐用
- 適用於3/4/5軸機台廣泛運用
- 適用於所有協威剛性虎鉗 (RV系列)
Features:
- Clamping system: Manual
- Modular design with high repeatability
- Made of steel, full hardness and grinding for durability
- Suitable for 3/4/5 axis machines
- Suitable for all Safeway Rigid Vise (RV Series)
QLS-52M-C1/C2/C3
QLS-96M-C1/C2/C3
| ORDER 訂購編號 | MODEL 型號 | A | B | C | D | K | Stud 適用拉栓 | N.W 淨重 | G.W 毛重 | Shipment size 裝箱尺寸 | Remarks 備註 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 30520200 | QLS-52M-C1 | 116 | 27 | 52 | 100 | / | Ø 16 | ||||
| 30520202 | QLS-52M-C2 | 157 | 27 | 52 | 130 | 12 | Ø 16 | ||||
| 30520204 | QLS-52M-C3 | 176 | 27 | 52 | 150 | 12 | Ø 16 | ||||
| 30960200 | QLS-96M-C1 | 176 | 27 | 96 | 150 | 12 | Ø 20 | ||||
| 30960202 | QLS-96M-C2 | 196 | 27 | 96 | 160 | 12 | Ø 20 | ||||
| 30960204 | QLS-96M-C3 | 246 | 27 | 96 | 200 | 12 | Ø 20 |
| Hole Pitches | 52mm, 96mm |
|---|
