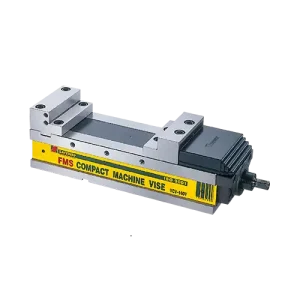

- Most Suitable for Vertical Machine Center, Milling Machine
- High Rigidity Material: Ductile Iron FCD 600 JIS (= GGG-60)(60kg/mm2, 80,000 psi ).
- Vise body- sliding surface: Hardened HRC45,durable and accurate.
- Stationary and Movable Jaw-Hardened HRC55,and Grinding, durable and accurate.
- Chip Cover- Prevent chips falling
- Clamping system: Screw Clamping
- Specifications:
| Model | VCV-100V | VCV-130V | VCV-160V | VCV-200V | VCV-250V |
|---|---|---|---|---|---|
| No | 10000100 | 10000130 | 10000160 | 10000200 | 10000250 |
| A | 398 | 508 | 573 | 653 | 903 |
| B | 300 | 410 | 475 | 555 | 805 |
| C | 98 | 98 | 98 | 98 | 98 |
| D | 101 | 131 | 161 | 201 | 251 |
| E | 124 | 149 | 152 | 194 | 402.5 |
| F | 130 | 147 | 160 | 170 | 193 |
| G | 78 | 83 | 86 | 100 | 124 |
| I | 64 | 74 | 86 | 97 | 124 |
| J/J1 | 155/213 | 250/315 | 300/370 | 350/426 | 550/650 |
| K | 45 | 52 | 55 | 60 | 78 |
| M | 25 | 30 | 30 | 30 | 40 |
| N | 18 | 18 | 18 | 18 | 22 |
| X | 45 | 65 | 65 | 92 | 276.5 |
| Y | 85 | 95 | 105 | 110 | 115 |
| G.W. (KG) | 23 | 40 | 60 | 90 | 166 |
| Shipment size(mm) | 600x210x185 | 660x240x200 | 760x280x205 | 840x325x230 | 1045x410x330 |
