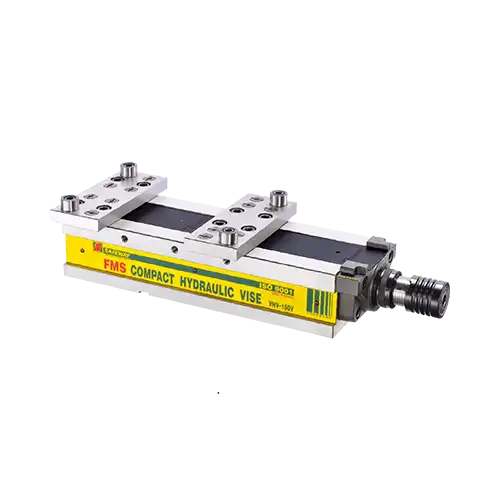

- Super-Low designed jaw. Best choice for any components!!!
- Balance Design!!! Excellent performance with gripper jaw, flexible for any component.
- Clamping : Hydraulic type
- High Rigidity Material: Ductile Iron FCD 600 JIS (= GGG-60)(60kg/mm2, 80,000 psi ).
- Specifications:
| Model | VHV-130V-FB | VHV-160V-FB | VHV-200V-FB | VHV-250V-FB |
|---|---|---|---|---|
| No | 10240130 | 10240160 | 10240200 | 10240250 |
| A | 545 | 610 | 690 | 903 |
| B | 410 | 475 | 555 | 805 |
| C | 135 | 135 | 135 | 98 |
| D | 131 | 161 | 201 | 251 |
| E | 190 | 220 | 260 | 310 |
| J | 180 | 220 | 250 | 450 |
| J1 | 320 | 380 | 460 | 700 |
| K | 22 | 22 | 22 | 28 |
| N | 18 | 18 | 18 | 22 |
| X | 60 | 64 | 90 | 276.5 |
| Y | 95 | 105 | 110 | 115 |
| G.W.(KG) | 38.5 | 52,5 | 83.0 | 159.0 |
| Shipment size(mm) | 660x240x200 | 760x280x205 | 840x325x230 | 1045x410x330 |
| Limit.Pressure | 72KN | 77KN | 82KN | 90KN |
| Model | VHV-130V-FM | VHV-160V-FM | VHV-200V-FM | VHV-250V-FM |
|---|---|---|---|---|
| No | 10242130 | 10242160 | 10242200 | 10242250 |
| A | 545 | 610 | 690 | 903 |
| B | 410 | 475 | 555 | 805 |
| C | 135 | 135 | 135 | 98 |
| D | 131 | 161 | 201 | 251 |
| E | 190 | 220 | 260 | 310 |
| J | 210 | 280 | 320 | 550 |
| J1 | 320 | 380 | 460 | 700 |
| K | 22 | 22 | 22 | 28 |
| N | 18 | 18 | 18 | 22 |
| X | 60 | 64 | 90 | 276.5 |
| Y | 95 | 105 | 110 | 115 |
| G.W.(KG) | 34.5 | 52.0 | 79.5 | 157.0 |
| Shipment size(mm) | 660x240x200 | 760x280x205 | 840x325x230 | 1045x410x330 |
| Limit.Pressure | 72KN | 77KN | 82KN | 90KN |
