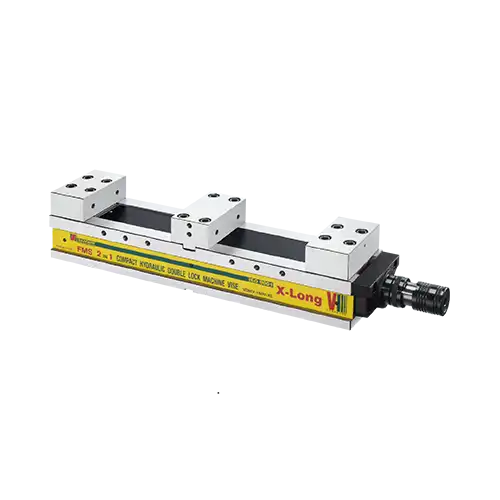

- Most Suitable for Vertical Machine Center
- Clamping system: mechanical / hydraulic type
- High Rigidity Material: Ductile Iron FCD 600 JIS (= GGG-60)(60kg/mm2, 80,000 psi ).
- Max. opening capacity and compact total length of vise body
- Specifications:
| Model | VDHV-160V-L | VDHV-160V-XL | VDHV-200V-BL | VDHV-200V-L | VDHV-200V-XL |
|---|---|---|---|---|---|
| No | 10430160 | 10432160 | 10440200 | 10442200 | 10444200 |
| A | 740 | 840 | 805 | 985 | 1130 |
| B | 590 | 690 | 655 | 835 | 980 |
| C | 150 | 150 | 150 | 150 | 150 |
| D | 161 | 161 | 201 | 201 | 201 |
| E | 295 | 345 | 327.5 | 417.5 | 490 |
| F | 160 | 160 | 170 | 170 | 170 |
| G/G1/G2 | 86/22/42 | 86/22/42 | 100/30/46 | 100/30/46 | 100/30/46 |
| I | 86 | 86 | 97 | 97 | 97 |
| J/J1/J2 | 160/230/182 | 210/280/232 | 175/250/202 | 265/340/292 | 335/410/362 |
| K | 55 | 55 | 60 | 60 | 60 |
| N | 18 | 18 | 18 | 18 | 18 |
| X | 43 | 43 | 50 | 50 | 50 |
| Y | 105 | 105 | 110 | 110 | 110 |
| G.W.(KG) | 80/78 | 86/84 | 123/121 | 150/146 | 155/151 |
| Shipment size(mm) | 940x280x220 | 940x280x220 | 809x370x290 | 1205x410x280 | 1300x410x280 |
